Servo Control Paper Roll To Sheet Cutting Machine / Paper Roll To Sheet Cutter

YUSH CARTON MACHINE COMPANY

Servo Control Paper Roll To Sheet Cutting Machine / Paper Roll To Sheet Cutter

Brand Name : YUSH

Model Number : QZJ-C

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD 15,000~25,000 per set

Payment Terms : T/T

Supply Ability : 15 sets per month

Delivery Time : 30~60 working days

Packaging Details : well packaged to loaded in container

Condition : New

After-sales service provided : Engineers available to service machinery overseas

Function : reel paper cut to sheet

Warranty : One year

Size : Customized

Speed : Customized

Color : Customized

Voltage : made to customer request

Contact Now

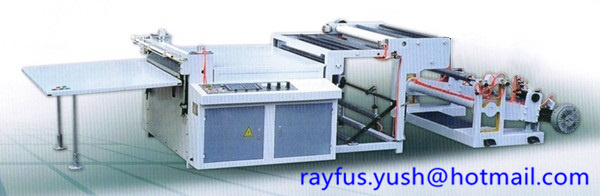

Automatic Paper Roll to Sheet Cutter, with printing-mark Sensor, servo control, high precision

Automatic Paper Roll to Sheet Cutter

Functional Specifications:

  1. QZJ-C Automatic Paper Sheeter adopts servo-motor to control cutting length.
  2. It is equipped with photoelectric tracing correction system, could also do high-precision cross-cutting.
  3. Transmission system adopts pneumatic system, hydraulic system, photoelectric sensor, etc. centralized control.
  4. The material feeding system adopts hydraulic lifting device. This machine integrates photo, electric, hydraulic, pneumatic, ect. together, easy to operate, high-precision cut, stable and low noise.
  5. Frequency adjusts motor speed, auto counting, alarm stopping, tension with digital display.
  6. This machine is suitable for sheeting large reel materials, such as paper, paper plastic complex material, colorful printed complex material, etc.
  7. It is widely used for application in the industry of paper processing & printing package.

Technical Parameters:

Model 1100 1400 1600
Max Paper Roll Width 1100mm 1400mm 1600mm
Paper Thickness 80~400gsm (customer cut 50~550gsm before)
Max Paper Roll Diameter 1400mm (electrical shaftless Paper Roll Stand)
Cutting Length 200~1200mm (printing mark sensor as optional)
Cutting Precision ±0.3mm
Design Speed 100m/min (150cuts/min)
Weight 3000kg 3500kg 4000kg
Dimension 7000*3500*1600mm 7000*3800*1600mm 7000*4000*1600mm

Servo Control Paper Roll To Sheet Cutting Machine / Paper Roll To Sheet Cutter

YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
